280 w moving head beam pattern light - LX - Y001
Voltage: AC100-240 - v, 50/60 hz
Rated power: 400 w
Light source type: 280 w platinum glass bubble
Cooling system: a built-in convection heat transfer/air cooling
Rated power: 400 w
Light source type: 280 w platinum glass bubble
Cooling system: a built-in convection heat transfer/air cooling
Parameter
Size

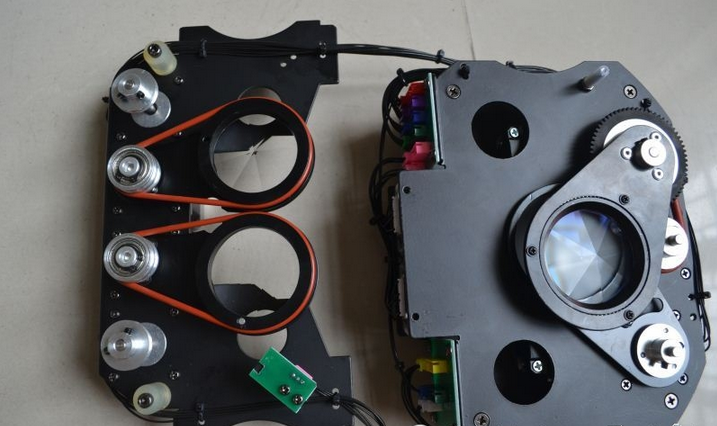

Detail
Effect light
Projection
Video

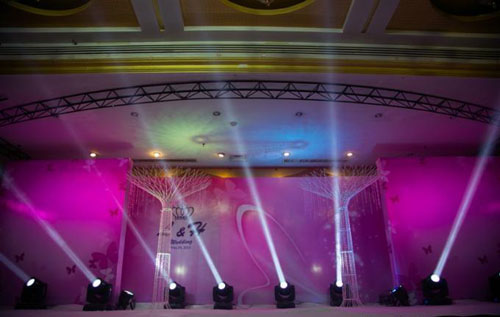

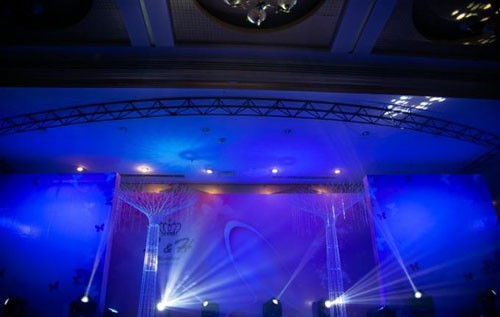

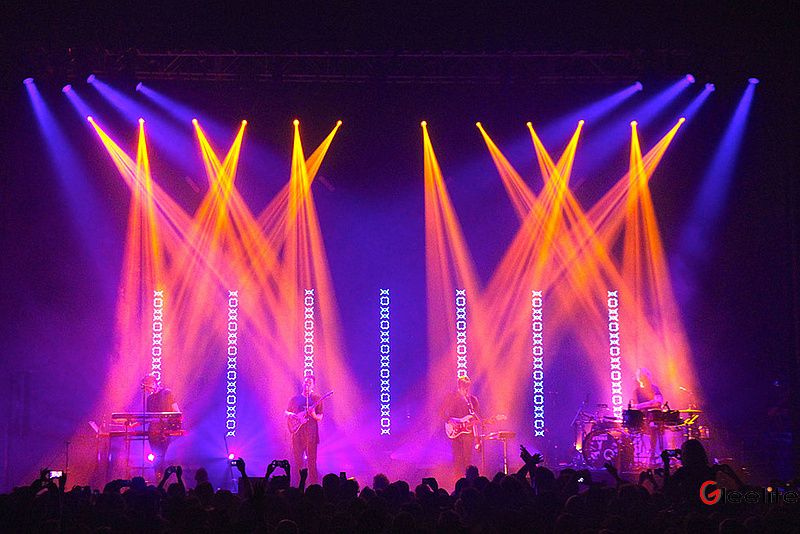

Application
Voltage: AC100-240 - v, 50/60 hz
Rated power: 400 w
Light source type: 280 w platinum glass bubble
Cooling system: a built-in convection heat transfer/air cooling
The optical system
Focus: independent electronic linear focusing
Dimming: 0-100%
Stroboscopic: 0-12 times per second
Dream a prism effect control, the prism effect, effect mirror effect
Control mode: DMX512 / master-slave/auto/synchronization
Horizontal: 540 ° (scan) 16 bit precision electronic error correction
Vertical scanning: 270 ° (scan) 16 bit precision electronic error correction
Channel: 16/24 of the international standard DMX512 channel
Color plate: a color plate, 13 kinds of color + white light
Pattern plate: a fixed pattern plate, design of 14 + white light; A rotating pattern plate, 9 kinds of design + white light
Prism: 8 prism; 6 linear prism
Mechanical dimmer, support mechanical stroboscopic and adjustable speed stroboscopic effect, frequency ShanHong support functions
The lens group of optical system, electric focus beam Angle 0 to 4.
Overheating protection
Protection grade: IP20
Packing size: 44 46 * * 58 cm
27 kg weight:
Rated power: 400 w
Light source type: 280 w platinum glass bubble
Cooling system: a built-in convection heat transfer/air cooling
The optical system
Focus: independent electronic linear focusing
Dimming: 0-100%
Stroboscopic: 0-12 times per second
Dream a prism effect control, the prism effect, effect mirror effect
Control mode: DMX512 / master-slave/auto/synchronization
Horizontal: 540 ° (scan) 16 bit precision electronic error correction
Vertical scanning: 270 ° (scan) 16 bit precision electronic error correction
Channel: 16/24 of the international standard DMX512 channel
Color plate: a color plate, 13 kinds of color + white light
Pattern plate: a fixed pattern plate, design of 14 + white light; A rotating pattern plate, 9 kinds of design + white light
Prism: 8 prism; 6 linear prism
Mechanical dimmer, support mechanical stroboscopic and adjustable speed stroboscopic effect, frequency ShanHong support functions
The lens group of optical system, electric focus beam Angle 0 to 4.
Overheating protection
Protection grade: IP20
Packing size: 44 46 * * 58 cm
27 kg weight:
